Attended & Unattended Card Present Security

EFTPOS Security and Encryption

Our range of EFTPOS terminal solutions have a tamper-resistant, tamper responsive design and digital end-to-end encryption technologies to protect sensitive cardholder data throughout the entire transaction. Even in the busiest retail environments, our terminals increase the security and flexibility of your payment system. With integrated market-leading Telium 2 architecture and a wealth of connectivity, our terminals like the iPP350 accept all existing forms of electronic payment, including contactless, EMV and mobile (NFC); are EMV, PCI PTS V2 and V3 and PA DSS v2.0 certified; and support the latest international security algorithms. Customer transactions are fast, private, efficient and secure.


Unattended Terminal Security and Encryption

Our unattended terminal solutions have robust encryption measures in place to prevent personal cardholder data breaches without compromising the speed and convenience of your cardholders' financial transactions.

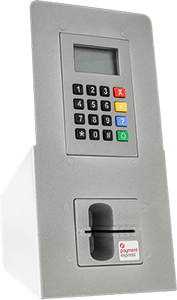

The Payment Express SCR200 series has the most comprehensive, end-to-end security solution available, it immediately encrypts data at the point of swipe, so personal information is never "in the clear".

It incorporates Payment Express' proprietary DUKPT key management system that dynamically encrypts every transaction with a unique key, as well as being PA DSS v2.0 certified.


Security and Encryption

  • Superior software and key loading procedures helps mitigate risk
  • Advanced cryptography is used to encrypt card data at the point of swipe
  • Every card is encrypted using a unique dynamically generated key
  • The POS software receives and transfers the encrypted data via a secure channel to the Payment Express server
  • The terminal features a compact, robust design with tamper detection
  • If tamper is detected, all encryption keys are erased from the terminal

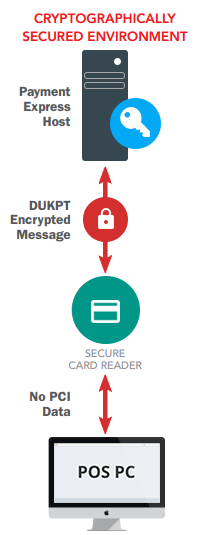

Security Diagram


Terminal Features
PCI 3.1 SRED (Secure Reading and Exchange of Data)
EMV L1 and L2 certified
PA DSS v2.0 certified
Online and offline EMV support
Highly integrated secure processor
Hardware accelerated encryption (Triple DES RSA and AES)
DUKPT key management
Remote key injection
End-to-end encryption of card data
Secure FIPS140 rated Micro with Active tamper
Robust compact design
Tamper detection with removal monitoring
Card skimming mitigating system
Anti-vandal metal bezel option
